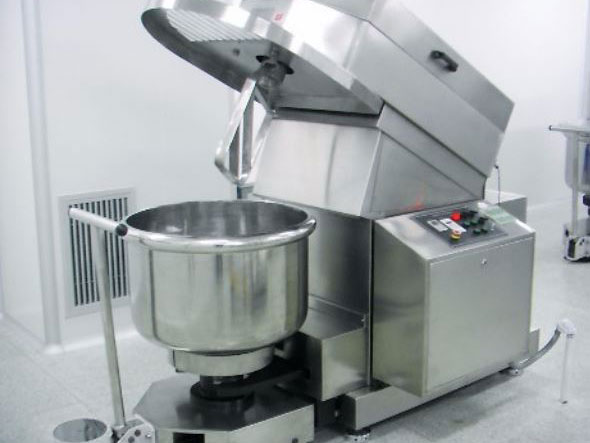

XH Series Planetary Mixer

XH series planetary mixer is primarily designed for mixing liquid or semi-solid products, it serves a variety of industries including pharmaceuticals, chemicals, cosmetics, food, etc. This mixing system features a detachable mixing bowl which enables cleaning operation easier.

• Model: XH-100
  1. Mixing bowl capacity: 100L
  2. Output: 300-500kg/h
  3. Total power: 4KW
  4. Dimension: 1400×1000×1400mm
  5. Weight: 800kg
  6. Voltage: Three-phase AC 380V
  Inquiry
• Model: XH-200
  1. Mixing bowl capacity: 200L
  2. Output: 600-1000kg/h
  3. Total power: 5KW
  4. Dimension: 1500×1100×1500mm
  5. Weight: 1200kg
  6. Voltage: Three-phase AC 380V
  Inquiry

• High output and large bowl capacity, available from 100L to 300L to meet various production needs;
• Uniform mixing, suitable for high viscosity materials, such as honeyed pills and highly concentrated pills in pharmaceutical industry, or dough in food industry;
• All parts in contact with materials are made of high grade stainless steel, in compliance with the GMP requirements;
• Easy to disassemble and clean, the rotation axis of the mixing bowl can be 45 degree inclined;

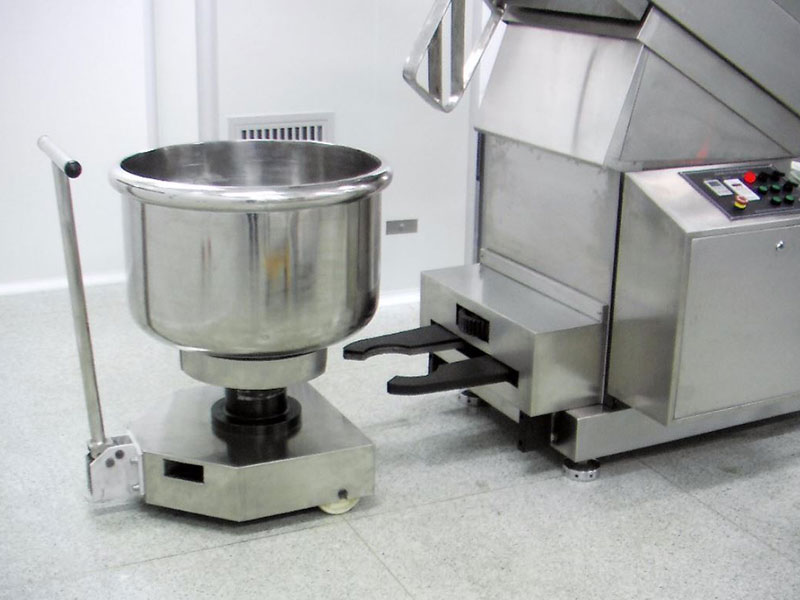

• Detachable mixing bowl can be used as a storage tank independently, this allows multiple bowl to work alternately when used as mixing bowl;
• PLC control achieves fully automatic operation;
