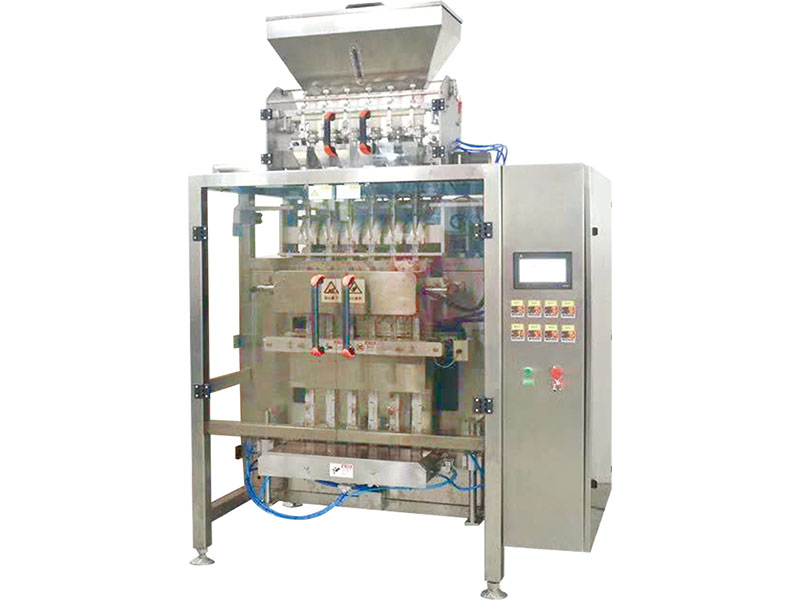

Vertical Stick Pack Packaging Machine

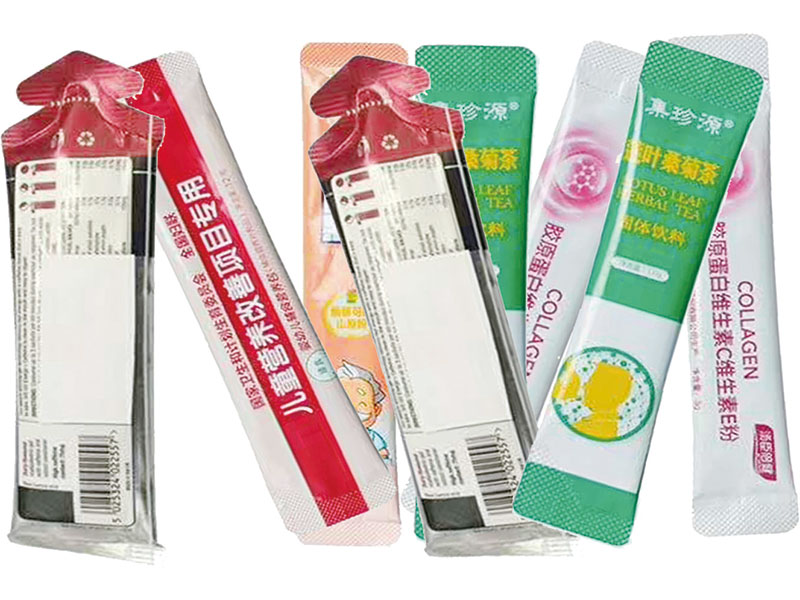

Our vertical stick pack packaging machine is a multi-lane packaging machine that can be equipped with various dosing systems for packaging of pills, granulates, powders, liquids, viscous liquids, etc., which is widely used in food, pharmaceutical, nutraceutical and cosmetic industries.

• Model: DT-4
  1. Output: 160 (bags per min)
  2. Bag width: 20mm-100mm
  3. Bag length: 40mm-160mm
  4. Machine weight: 800kg
  5. Machine dimension: 1300×1300×2550mm – 1800×1800×2550mm
  Inquiry
• Model: DT-6
  1. Output: 240(bags per min)
  2. Bag width: 20mm-100mm
  3. Bag length: 40mm-160mm
  4. Machine weight: 1000kg
  5. Machine dimension: 1300×1300×2550mm – 1800×1800×2550mm
  Inquiry
• Model: DT-8
  1. Output: 320 (bags per min)
  2. Bag width: 20mm-100mm
  3. Bag length: 40mm-160mm
  4. Machine weight: 1200 kg
  5. Machine dimension: 1300×1300×2550mm – 1800×1800×2550mm
  Inquiry
• Model: DT-10
  1. Output: 400 (bags per min)
  2. Bag width: 20mm-100mm
  3. Bag length: 40mm-160mm
  4. Machine weight: 1400kg
  5. Machine dimension: 1300×1300×2550mm – 1800×1800×2550mm
  Inquiry
• Model: DT-12
  1. Output: 480 (bags per min)
  2. Bag width: 20mm-100mm
  3. ag length: 40mm-160mm
  4. Machine weight: 1600kg
  5. Machine dimension: 1300×1300×2550mm – 1800×1800×2550mm
  Inquiry

This vertical packaging machine is configurable with different dosing systems such as cup filler, auger filler, liquid pump, etc. to meet customers’ individual packaging demands.

The machine is compatible with in-line checkweigher, cartoning machine, shrink wrapping machine, case packer, etc. to form a complete automatic packaging line.

• PLC control with touch screen, processes of bagging, dosing, filling, sealing, cutting can be automatically carried out in one step;
• Dosing system is selectable according to filling materials, easy to changeover;

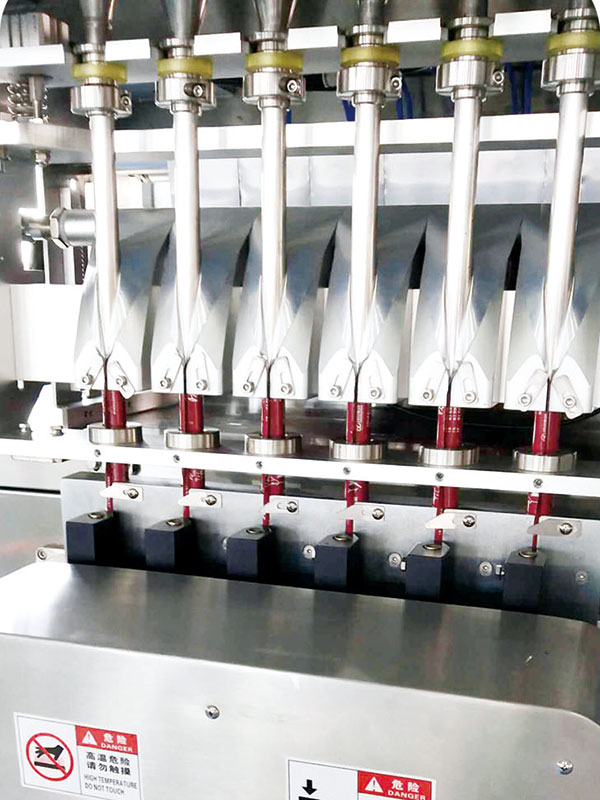

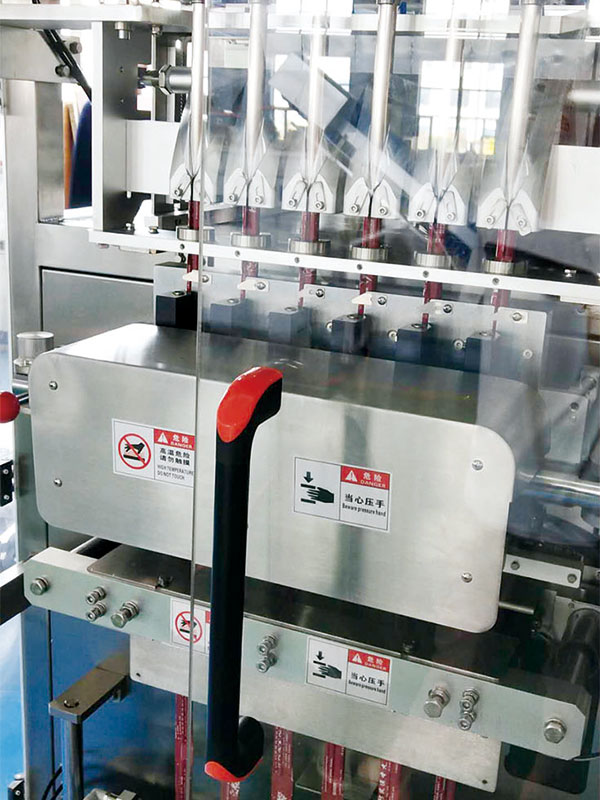

• Servo driven cross sealing ensures a consistent seal quality and can prevent packaging film from being deformed;

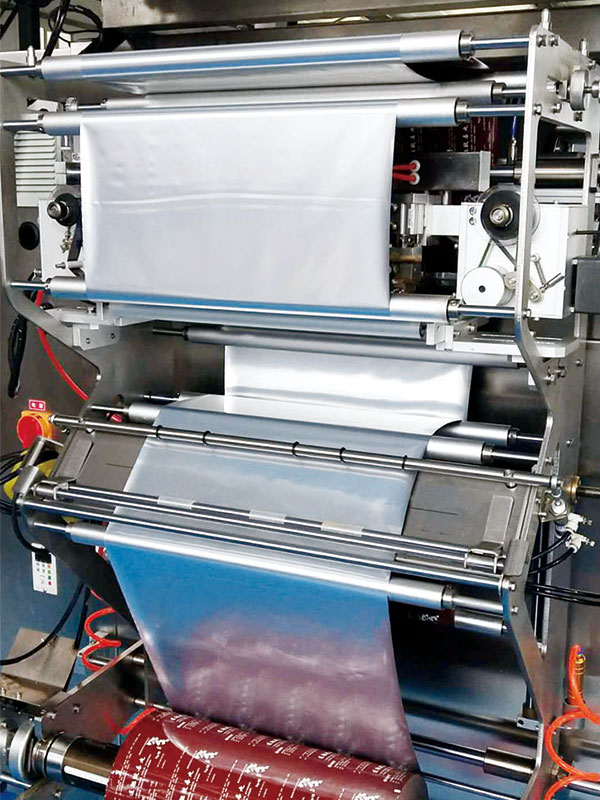

• Photocell is adopted for bag length adjustment, providing high accuracy of bag size;
• Various cutting edges are available, such as flat cut, zigzag cut, round corner and other special shaped edges;
