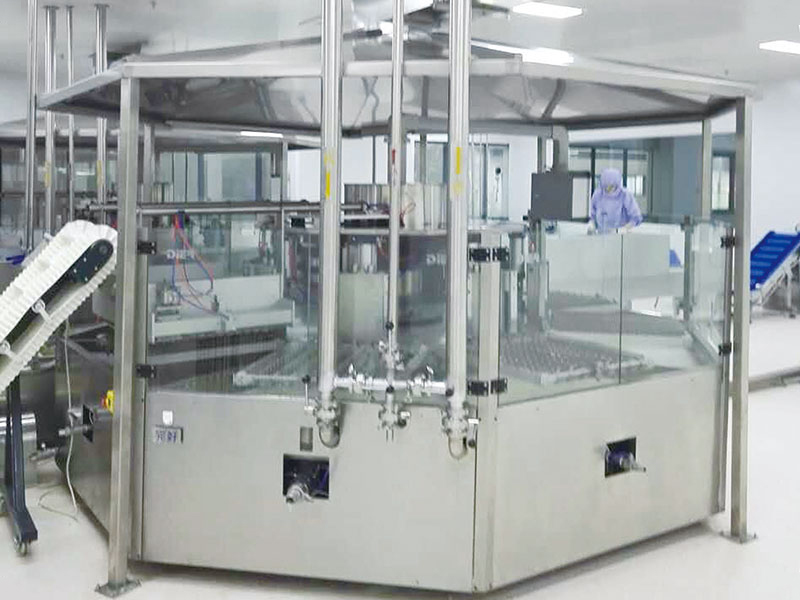

Wax Coating Machine

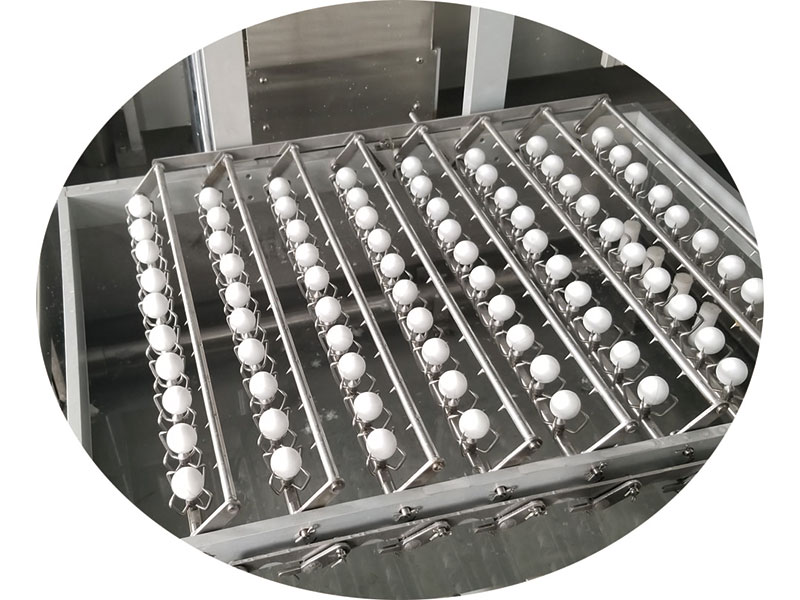

Our wax coating machine is mainly designed to cover a wax layer for plastic spherical shell of traditional Chinese medicine pill. It can continuously accomplish processes of shell loading, shell distributing, wax dipping, cooling and outfeeding.

• Type: 20000 series
  1. Output: 21000-21600 pills/h
  2. Pill specification: 3, 6, 9, and more specifications (corresponding parts need to be changed)
  3. Power: 25kw/h
  4. 1. main motor: 0.75kw/h
  5. 2. pump motor: 0.75kw
  6. 3.electric heating tube:30kw/h
  7. Water cooling unit: 8P
  8. Air consumption: 0.5m3/min
  9. Air pressure: 0.6Mpa
  10. Power supply: Three-phase five-wire 380V 50HZ
  Inquiry
• Type: 30000 series
  1. Output: 30000-32000 pills/h
  2. Pill specification: 3, 6, 9, and more specifications (corresponding parts need to be changed)
  3. Power: 49kw/h
     1. main motor: 0.75kw/h
     2. pump motor: 0.75kw
  4. Water cooling unit: 12P
  5. Air consumption: 0.5m3/min
  6. Air pressure: 0.6Mpa
  7. Power supply: Three-phase five-wire 380V 50HZ
  Inquiry

• Coated wax shell features smooth surface finish, excellent sealing effect;
• Uniform thickness of wax layer, giving a superior look;
• The temperature of water and wax are adjustable, reliable and easy operation;
• PLC programmable control, touch screen operation, high automation, GMP standard compliant;
