XQJ Series Bottom Discharge Planetary Mixer

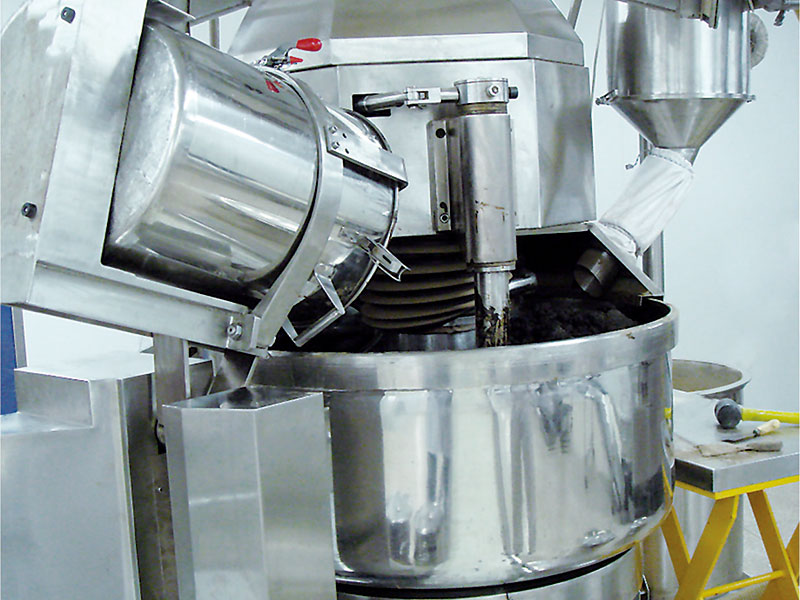

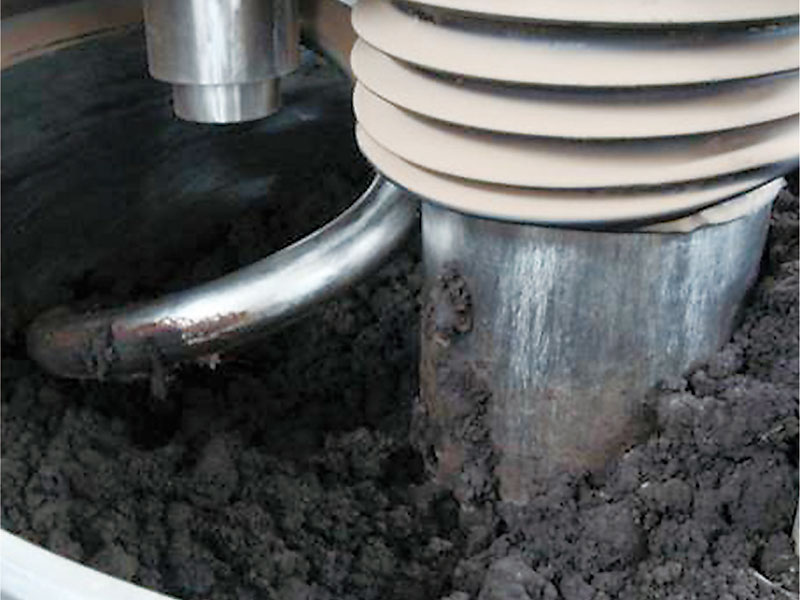

Our XQJ series bottom discharge mixer is a planetary mixer designed with double mixing blades. These mixing blades rotate inside the mixing bowl, while the mixing bowl rotates around its own axis simultaneously, it enables the materials to be completely mixed. And then, the mixed materials will be automatically discharged through bottom discharge system.

• Model: XQJ-200
  1. Mixing bowl capacity: 280L
  2. Output: 750 kg/h
  3. Total power: 18KW
  4. Dimension: 2050×1350×2600mm
  5. Weight: 2000kg
  6. Voltage: Three-phase AC 380V
  Inquiry
• Model: XQJ-300
  1. Mixing bowl capacity: 300 L
  2. Output: 1500-2500kg/h
  3. Total power: 10KW
  4. Dimension: 1900×1300×1800 mm
  5. Weight: 2000 kg
  6. Voltage: Three-phase AC 380V
  Inquiry
• Model: XQJ-500
  1. Mixing bowl capacity: 500 L
  2. Output: 3000-5000kg/h
  3. Total power: 12KW
  4. Dimension: 2000×1400×1800mm
  5. Weight: 2500kg
  6. Voltage: Three-phase AC 380V
  Inquiry

• High output and large bowl capacity, can mix materials of over 150kg per batch, ideal to be used as in-line mixer for large-scale production;
• Perfect for mixing of high viscosity materials, such as honeyed pills and highly concentrated pills;
• All parts in contact with materials are made of high grade 304 stainless steel, in compliance with the GMP requirements;

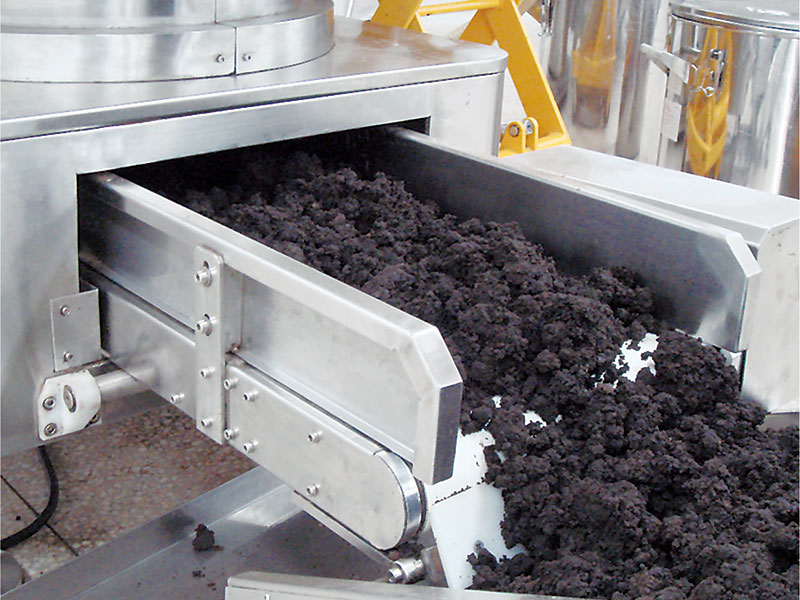

• Automatic discharging of finished materials;
• Mixing blades can be lifted for easy cleaning and maintenance;
• PLC control with touch screen operation;
• Hydraulic system features safety interlock, guaranteeing safe production;
• Various shapes of mixing blade are available for different application needs, the rotation speed of mixing blade is adjustable within a range of 5-50rpm, and the speed of mixing bowl can also be adjusted;
• Automatic ingredients adding function is available as per customer's request;
