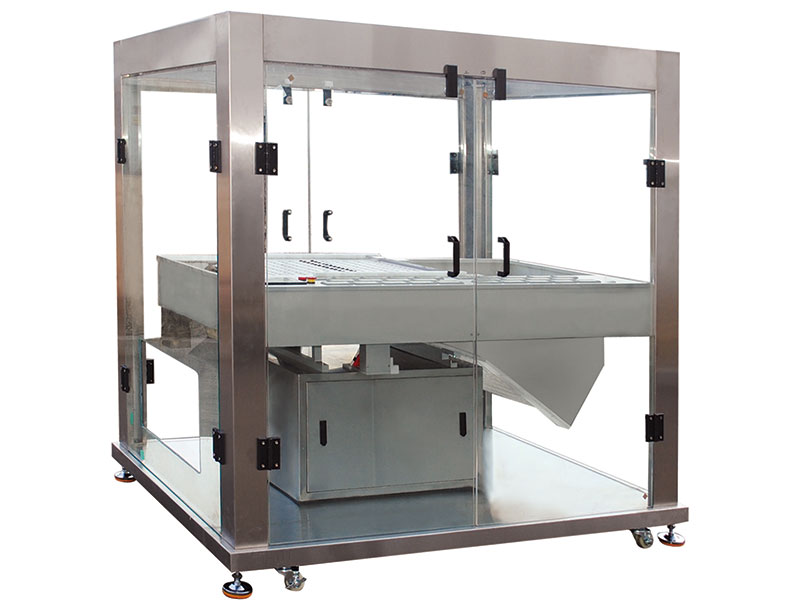

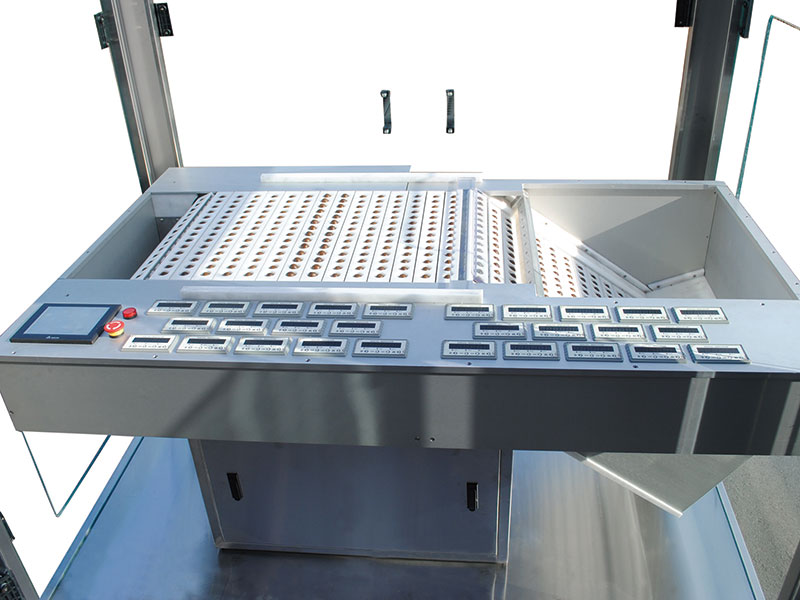

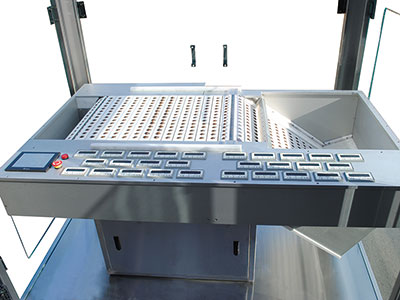

Pharmaceutical Checkweigher and Detector

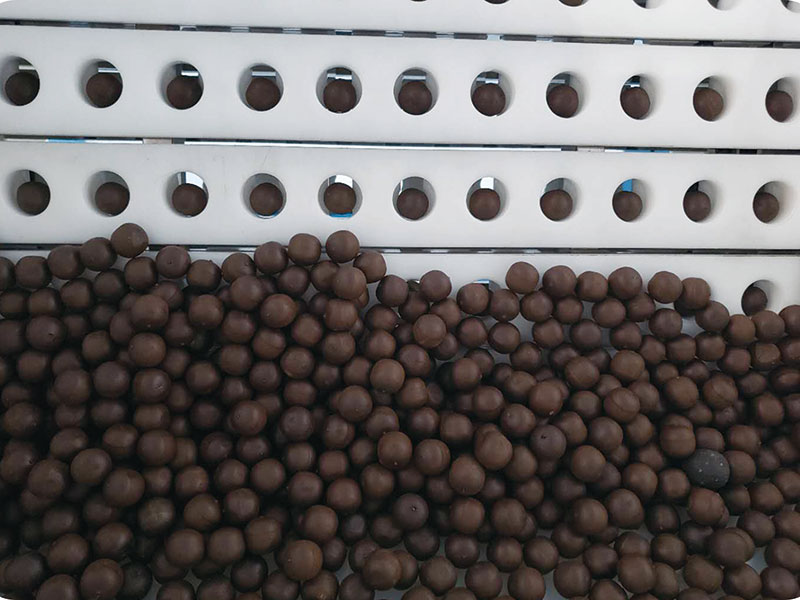

Dier pharmaceutical checkweigher and detector is designed primarily for high precision weighing of traditional Chinese medicine pills and reliable inspection for any impurities. The checkweigher system can be used as a stand-alone unit, and suitable for inline check weighing applications as well. It plays a critical role in pharmaceutical products weighing and inspection.

• Model: MZC-10
  1. Output: 8000-10000 pills per hour
  2. Total power: 0.5 kw
  3. Machine dimension: 1700*600*1000mm
  4. Machine weight: 400 kg
  5. Pill specification : 3, 6, 9, 10 g/pc
  6. Air pressure: 0.6Mpa
  Inquiry
• Model: MZC-20
  1. Output: 18000-20000 pills per hour
  2. Total power: 0.75 kw
  3. Machine dimension: 1700*800*1000mm
  4. Machine weight: 500 kg
  5. Pill specification : 3, 6, 9, 10 g/pc
  6. Air pressure: 0.6Mpa
  Inquiry
• Model: MZC-30
  1. Output: 28000-30000 pills per hour
  2. Total power: 0.75kw
  3. Machine dimension: 1700*1100*1000mm
  4. Machine weight: 600 kg
  5. Pill specification : 3, 6, 9, 10 g/pc
  6. Air pressure: 0.6Mpa
  Inquiry

• Servo control system ensures smooth operation of machine and precise conveying of drugs;
• Multiple weighing sensors and weight transmitters are used to carry out simultaneous weighing of multiple pills;
• Small impact on the load cell when drugs are loading or offloading, improving weighing accuracy;
