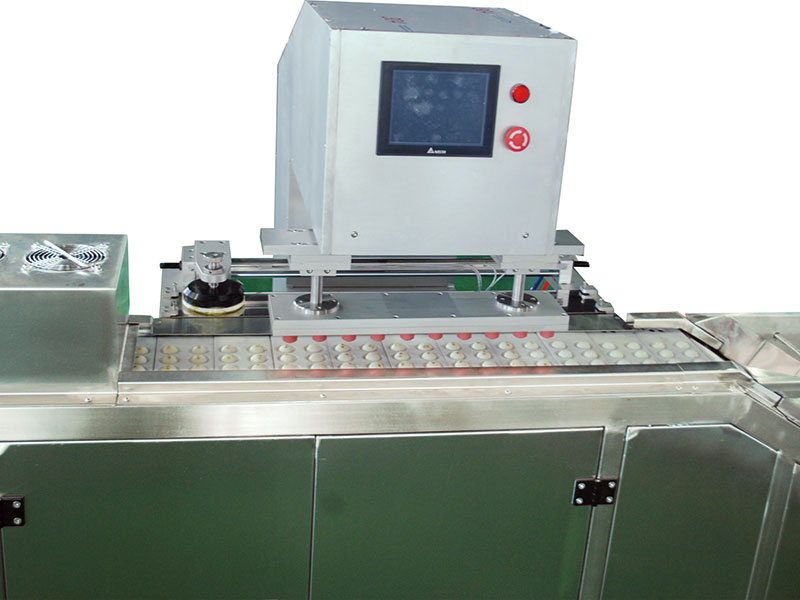

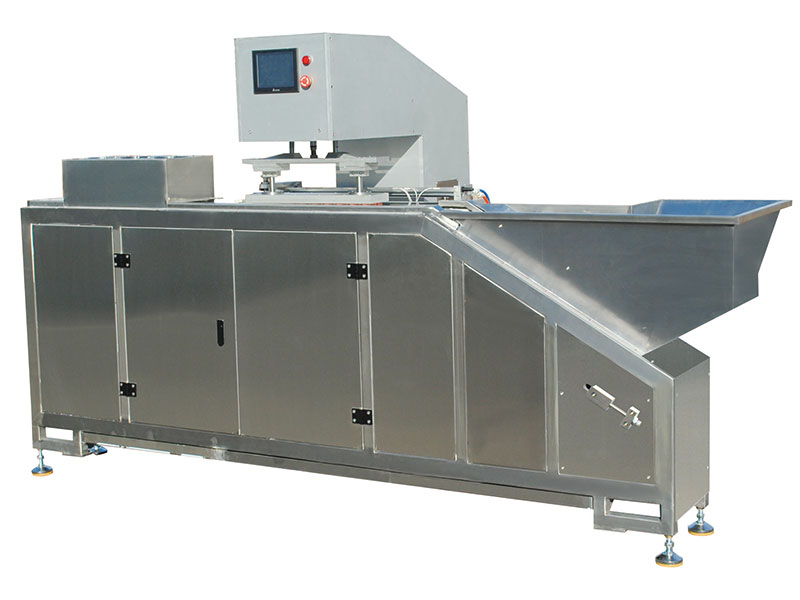

Automatic Wax Shell Printing Machine (for traditional Chinese medicine pills)

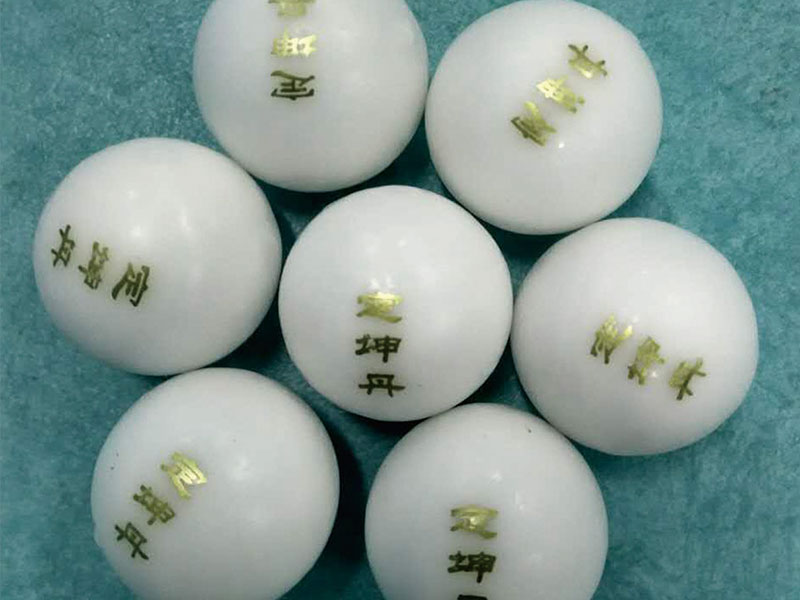

Dier’s pharmaceutical printing machine is particularly designed for creating a clear trademark, brand name, simple text or logo on wax shell of traditional Chinese medicine pill, as well as your pharmaceutical products. This pharmaceutical equipment is applicable to both stand-alone and continuous in-line printing operations.

• Model: MLY-10
  1. Output: 8000-10000 pills per hour
  2. Total power: 0.75 kw
  3. Machine dimension: 3000*600*1800mm
  4. Machine weight: 400 kg
  5. Pill specification: 3, 6, 9, 10g/pc
  6. Air pressure: 0.6Mpa
  Inquiry
• Model: MLY-20
  1. Output: 18000-20000 pills per hour
  2. Total power: 1.5 kw
  3. Machine dimension: 3000*900*1800mm
  4. Machine weight: 500 kg
  5. Pill specification: 3, 6, 9, 10g/pc
  6. Air pressure: 0.6Mpa
  Inquiry
• Model: MLY-30
  1. Output: 28000-30000 pills per hour
  2. Total power: 2.2kw
  3. Machine dimension: 3000*1200*1800mm
  4. Machine weight: 600 kg
  5. Pill specification: 3, 6, 9, 10g/pc
  6. Air pressure: 0.6Mpa
  Inquiry

• Capable of producing clear printing mark, printed wax shells are cooled and cured by cooling air, the printed characters are not easy to rub off;

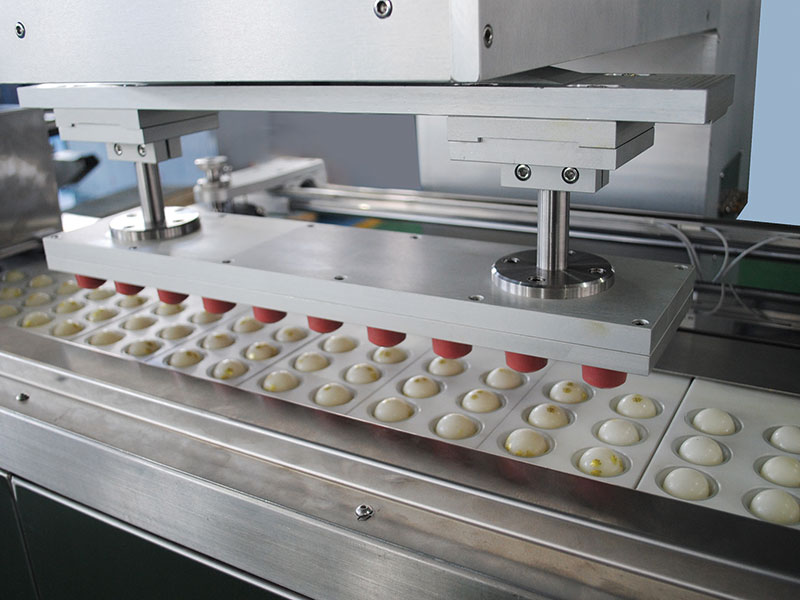

• Wax shells are evenly and precisely distributed into each cavity of mold plate, ensuring accurate printing;
• Adopting flexible printing head, minimal deformation of printed characters;
• Fully automatic operation, modular design, simple to set up and changeover, saving labor intensity;
