    Dier suppository filling and sealing machine is designed for production of suppositories for the pharmaceutical industry. Rolls of PVC or PE/PVC sheets are blown and formed into shells where the equally mixed liquid drug will be precisely filled in. Once filled, the shells are transported into cooling unit to convert drugs from liquid to solid with required shape.

    Choose Your Model
    • Model: GZS-15A type
      1. Output: 26000-30000 granulations/hour
      2. Weight per granulation: 0.5-3.7g
      3. Dosage difference: ±2%
      4. Dimension: 7400*2100*2400mm
      5. Machine weight: 2500kg

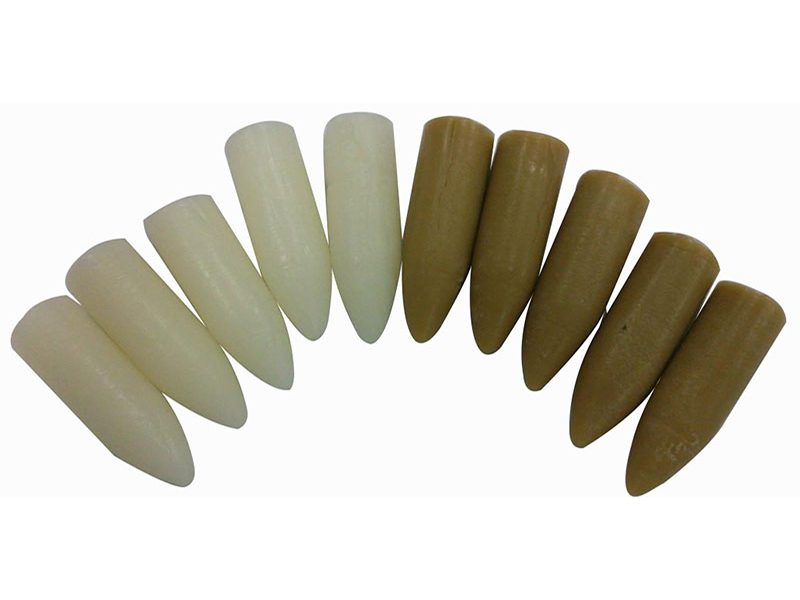

      6. Suppository forms: Bullet-head form, torpedo form, duck-mouth form and other special forms
      7. Adapting group: Demi-synthesis fatty acid lipo-glycerol, glycerol gelatin, polyethylene glycol etc.
      8. Drug liquid tank capacity: 70L
      9. Loading height: 2000mm
      10. Power voltage: Three phase AC 380V(3-PHASEAC)
      11. Total power: 21KW
      12. Air pressure: 0.5MP
      13. Air consumption: 1.6 m³/min
      14. Water consumption: 600L/h (recycling)
      Inquiry
    • Model: GZS-15U type
      1. Output: 18000-24000 granulations/hour
      2. Weight per granulation: 0.5-3.7g
      3. Dosage difference: ±2%
      4. Dimension: 4500*5700*2000mm
      5. Machine weight: 2500kg
      6. Suppository forms: Bullet-head form, torpedo form, duck-mouth form and other special forms
      7. Adapting group: Demi-synthesis fatty acid lipo-glycerol, glycerol gelatin, polyethylene glycol etc.
      8. Drug liquid tank capacity: 70L
      9. Loading height: 2000mm
      10. Power voltage: Three phase AC 380V
      11. Total power: 21KW
      12. Air pressure: 0.5MP
      13. Air consumption: 2m³/min
      14. Water consumption: 1000L/h (recycling)
      Inquiry
    • Model: GZS-9A type
      1. Output: 18000-22000 granulations/hour
      2. Weight per granulation: 0.5-3.7g
      3. Dosage difference: ±2%
      4. Dimension: 4800*2040*2400mm
      5. Machine weight: 2000kg
      6. Suppository forms: Bullet-head form, torpedo form, duck-mouth form and other special forms
      7. Adapting group: Demi-synthesis fatty acid lipo-glycerol, glycerol gelatin, polyethylene glycol etc.
      8. Drug liquid tank capacity: 70L
      9. Loading height: 2000mm
      10. Power voltage: Three phase AC 380V
      11. Total power: 17KW
      12. Air pressure: 0.5MP
      13. Air consumption: 1.5 m³/min
      14. Water consumption: 600L/h (recycling)
      Inquiry
    • Model: ZS-linear type
      1. Output: 8000-10000 granulations/hour
      2. Weight per granulation: 0.5-5g
      3. Dosage difference: ±2%
      4. Dimension: 6900*1500*1800mm
      5. Machine weight: 1900kg
      6. Suppository forms: Bullet-head form, torpedo form, duck-mouth form and other special forms
      7. Adapting group: Demi-synthesis fatty acid lipo-glycerol, glycerol gelatin, polyethylene glycol etc.
      8. Drug liquid tank capacity: 50L
      9. Loading height: 1600mm
      10. Power voltage: Three phase AC 380V
      11. Total power: 13KW
      12. Air pressure: 0.5MP
      13. Air consumption: 1.5 m³/min
      14. Water consumption: 600L/h (recycling)
      Inquiry
    • Model: ZS-U type
      1. Output: 8000-10000 granulations/hour
      2. Weight per granulation: 0.5-5g
      3. Dosage difference: ±2%
      4. Dimension: 3490*2900*2000mm
      5. Machine weight: 1700kg
      6. Suppository forms: Bullet-head form, torpedo form, duck-mouth form and other special forms
      7. Adapting group: Demi-synthesis fatty acid lipo-glycerol, glycerol gelatin, polyethylene glycol etc.
      8. Drug liquid tank capacity: 50L
      9. Loading height: 1600mm
      10. Power voltage: Three phase AC 380V
      11. Total power: 13KW
      12. Air pressure: 0.5MP
      13. Air consumption: 1.5 m³/min
      14. Water consumption: 600L/h (recycling)
      Inquiry
    • Model: ZS-3A type
      1. Output: 6000-8000 granulations/hour
      2. Weight per granulation: 0.5-3.7g
      3. Dosage difference: ±2%
      4. Dimension: 2700*1720*2300mm
      5. Machine weight: 1200kg
      6. Suppository forms: Bullet-head form, torpedo form, duck-mouth form and other special forms
      7. Adapting group: Demi-synthesis fatty acid lipo-glycerol, glycerol gelatin, polyethylene glycol etc.
      8. Drug liquid tank capacity: 50L
      9. Loading height: 2000mm
      10. Power voltage: Three phase AC 380V
      11. Total power: 9KW
      12. Air pressure: 0.5MP
      13. Air consumption: 1.50m³/min
      14. Water consumption: 600L/h (recycling)
      Inquiry
    • Model: BZS-semi auto type
      1. Output: 5000-6000 granulations/hour
      2. Weight per granulation: 0.5-5g
      3. Dosage difference: ±2%
      4. Dimension: 4500*1700*2000mm
      5. Machine weight: 1000kg
      6. Suppository forms: Bullet-head form, torpedo form, duck-mouth form and other special forms
      7. Adapting group: Demi-synthesis fatty acid lipo-glycerol, glycerol gelatin, polyethylene glycol etc.
      8. Drug liquid tank capacity: 50L
      9. Loading height: 1800mm
      10. Power voltage: Three phase AC 380V
      11. Total power: 7.8KW
      12. Air pressure: 0.5MP
      13. Air consumption: 0.5m³/min
      14. Water consumption: 600L/h (recycling)
      Inquiry
    View Details
    • Suppository Filling and Sealing Machine
      Alu & Alu suppository filling and sealing machine
    • Suppository Filling and Sealing Machine
      Automatic suppository filling and sealing machine
    • Suppository Filling and Sealing Machine
      GZS-9A automatic suppository filling and sealing machine
    Features
    • The machine can be operated in continuous or intermittent motion, features precise filling position and high dosing accuracy.
    • Suitable for filling traditional Chinese medicine suppository and gelatin matrix with higher viscosity.
    • Applicable to a variety of roll materials, such as ALU/PE, PP/ALU/PE, PVC, PVC/PE, PVC/PVDC/PE.
    • PLC programmable control and HMI (Human Machine Interface), providing high degree of automation and stable operation.
    • Large capacity drug liquid tank features automatic control unit for constant temperature, stirring and liquid level.
    • Continuous circulation system for pipeline prevents liquid drug from being solidified when machine shutdown.
