Traditional Chinese Medicine Pill Machine (for Small Pills)

Dier offers traditional Chinese medicine pill machines that are custom-manufactured to satisfy your individual demands, no matter whether it is vertical type or horizontal type. Our herbal pill making machines are mainly used for production of honeyed pills, water pills, water-honeyed pills, highly concentrated pills, etc.

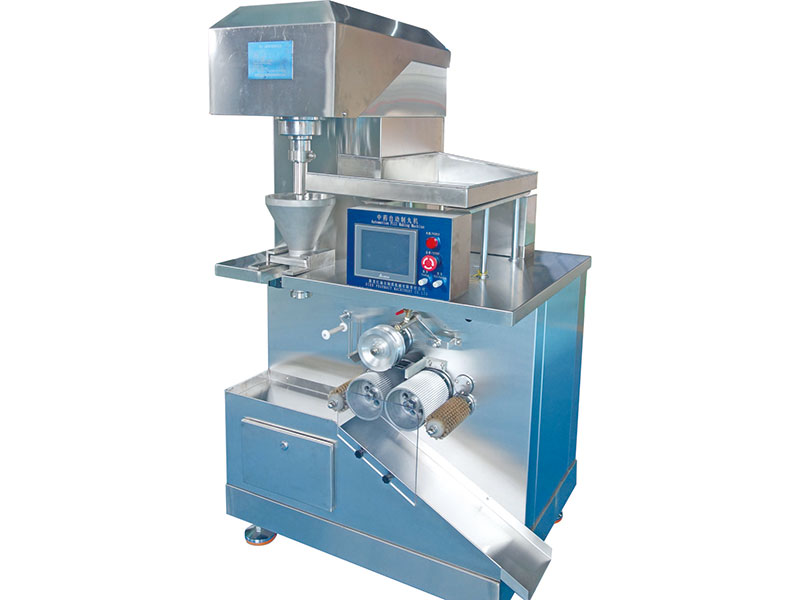

• Model: ZW-40 vertical
  1. Output : 5-40 kg/h
  2. Pill specification : 3, 6, 9 g/pc
  3. Total power : 2.2 kw
  4. Dimension : 950×750×1600 mm
  5. Machine weight : 400 kg
  Inquiry
• Model: WZ—120 horizontal
  1. Output : 60—120kg/h
  2. Pill specification : 3, 6, 9 g/pc
  3. Total power : 4.9kw
  4. Dimension : 1830×810×1700mm
  5. Machine weight : 1000 kg
  Inquiry
• Model: WZ—180 horizontal
  1. Output : 120-180 kg/h
  2. Pill specification : 3, 6, 9 g/pc
  3. Total power : 6.5 kw
  4. Dimension : 1950×880×1630 mm
  5. Machine weight : 800kg
  Inquiry

• Designed with PLC control with touch screen HMI (Human Machine Interface), achieving fully automatic production process.
• Produced pills feature high roundness, saving time for pill reshaping.
• The uniformity of pills is over 98%, reducing time for pill sieving.
• The design of rotation function facilitates assembly, disassembly and cleaning.
• The entire machine body is precisely machined, guaranteeing high assembly accuracy, long-lasting operation, stable running and low failure rate.
• Pill knife is specially treated for enhanced durability.
• Variable frequency speed control for drug materials feeding and cutting, providing high reliability.
• Lubrication system has liquid level indicator, and features good leakage resistance and adjustable liquid dripping volume.

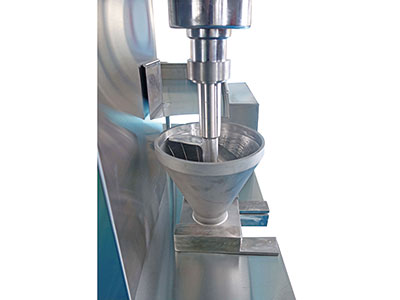

• Feeding section is completely made of stainless steel castings in compliance with GMP requirements.

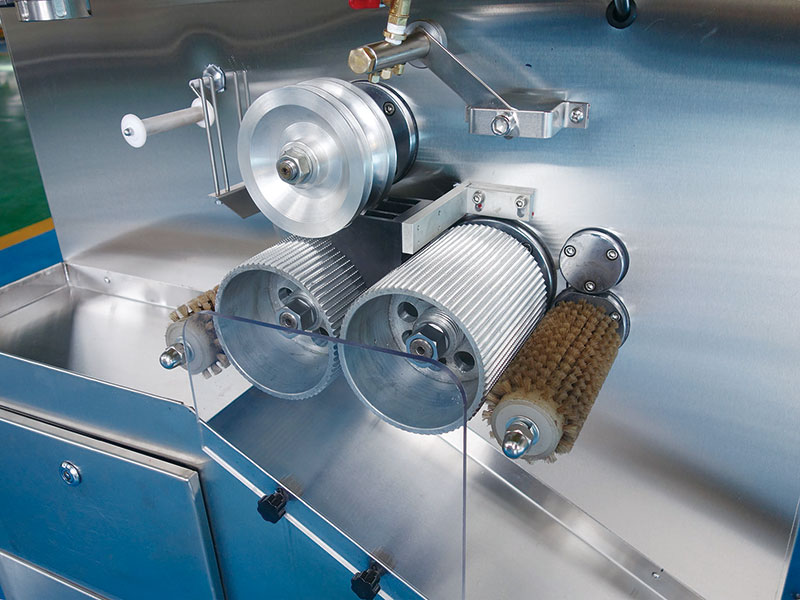

• Rolling brushes are placed at both sides of pill knife to remove drug materials that are attached on the pill knife.
