Fully Automatic Traditional Chinese Medicine Pill Production Line

Our fully automatic traditional Chinese medicine pill production line is capable of accomplishing production process from material mixing, blending, kneading, granulation, to finial drugs drying. The entire production process is automatically carried out, significantly improving production efficiency while reducing labor intensity. Finished pills are featured by stable medicinal properties in compliance with GMP requirements.

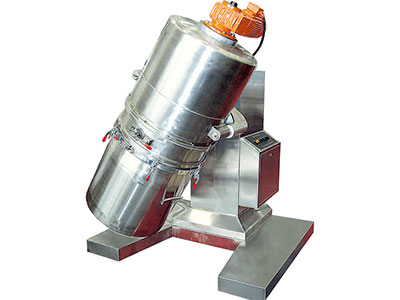

• Automatic Powder Blender
  Model: HF-200
  1. Production capacity: 400-450kg/h
  2. Total power: 6kw
  3. Dimension: 2200×1800×2200mm
  4. Overall Weight: 1000kg
  5. Functions & Advantages: Blending powder inside drum, enabling the powder to be highly uniform blended
• Planetary mixer with bottom discharge system
  Model: GHC-300
  1. Production capacity: 1500-2500kg/h
  2. Total power: 8.5kw
  3. Dimension: 1900×1300×1800mm
  4. Overall Weight: 2000kg
  5. Functions & Advantages: Short blending time, high efficiency, automatic bottom discharge
• Chinese medicine kneader (double-layer)
  Model: GSL-450
  1. Production capacity: 400-500kg/h
  2. Total power: 15kw
  3. Dimension: 2100×710×1390mm
  4. Overall Weight: 700kg
  5. Functions & Advantages: Increasing viscosity and evenness of medicine
• Automatic horizontal granulator
  Model: WZ-180
  1. Production capacity: 80-180kg/h
  2. Total power: 6.5kw
  3. Dimension: 1950×880×1630mm
  4. Overall Weight: 1200kg
  5. Functions & Advantages: Output is varying according to properties and shapes of pills
• Automatic powder distributing machine
  Model: BF-300
  1. Production capacity: 250-300kg/h
  2. Total power: 0.12kw
  3. Dimension: 900×600×800mm
  4. Overall Weight: 100kg
  5. Functions & Advantages: Automatic powdering on the wet pill to form a non-stick layer, and the powder is reusable

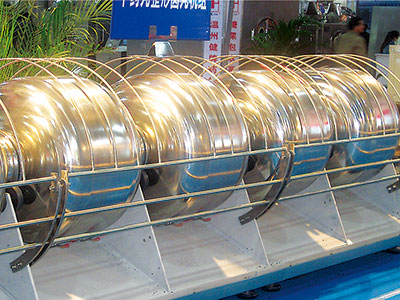

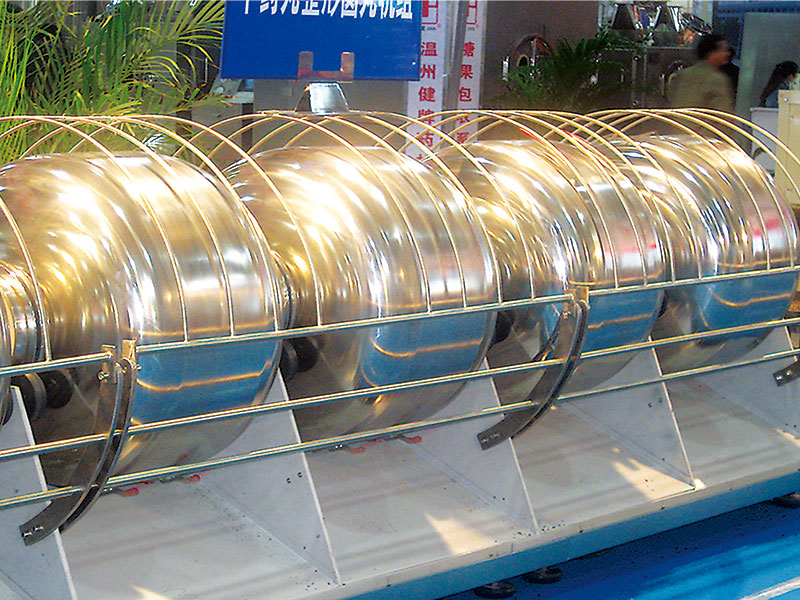

• Pill rounding machine
  Model: QGZ-06
  1. Production capacity: Matched capacity
  2. Total power: 3kw
  3. Dimension: 5080×1050×1365mm
  4. Overall Weight: 900kg
  5. Functions & Advantages: Can be equipped with 4-12 tanks according to required productivity

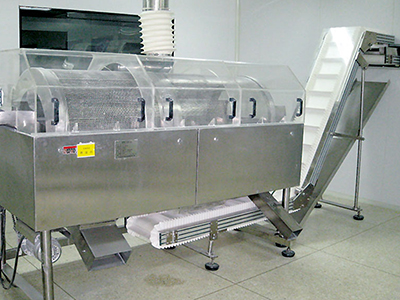

• Drum-type pill sieving machine
  Model: SWJ-Ⅰ
  1. Production capacity: 100-300kg/h
  2. Total power: 0.55kw
  3. Dimension: 2500×1100×1600mm
  4. Overall Weight: 300kg
  5. Functions & Advantages: 2 sectional sieving drum, square sieving hole
• Tunnel type microwave drying & sterilizing machine
  Model: SWG-40-5
  1. Production capacity: Dewatering≥30kg/h
  2. Total power: 40kw(Adjustable)
  3. Dimension: 12840×1750×2200mm
  4. Overall Weight: 3000kg
  5. Functions & Advantages: Microwave energy is selectable according to initial water content and required productivity

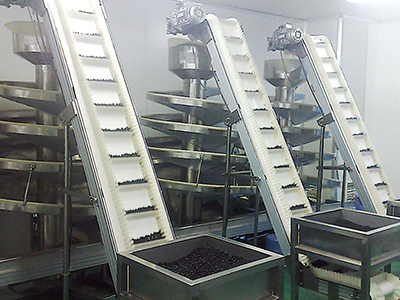

• Centrifugal pill sieving machine
  Model: XW-Ⅱ
  1. Production capacity: 200-300kg/h
  2. Total power: 50HZkw
  3. Dimension: 1330×1330×2860mm
  4. Overall Weight: 180kg
  5. Functions & Advantages: Two types of sieving machine is available according to pill shapes
• Coating machine (for sugar coated pills)
  Model: BY-1000
  1. Production capacity: 50-80kg/h
  2. Total power: 2.5kw
  3. Dimension: 1350×100×1900mm
  4. Overall Weight: 500kg
  5. Functions & Advantages: After drying process, pills are coated and colored

This granulation line is fabricated for production of traditional Chinese medicine large pills. The drug production line mainly consists of mixer, granulator, manipulator inspection system, pill lifting unit, etc., achieving complete automatic in-line production process for traditional Chinese medicine pills, including mixing, blending, granulation, cooling, shell packaging, wax coating, printing, blister packaging, and cartoning.

• Vertical planetary mixing with dual stirrer blades, automatic adding of ingredients, uniform mixing and blending;
• Raw materials are automatically pre-processed, extruded and cut into sheet shape;
• Six pill rollers are fully automatic servo driven, ensuring that the drug strips are fed out in a uniform speed;
• Pills are automatically inspected and weighed by manipulator, the unqualified pills are automatically rejected, eliminating the need for manual inspection;
• Tray type cooling unit automatically accomplishes pill loading, cooling and unloading, the trays are easy to clean;

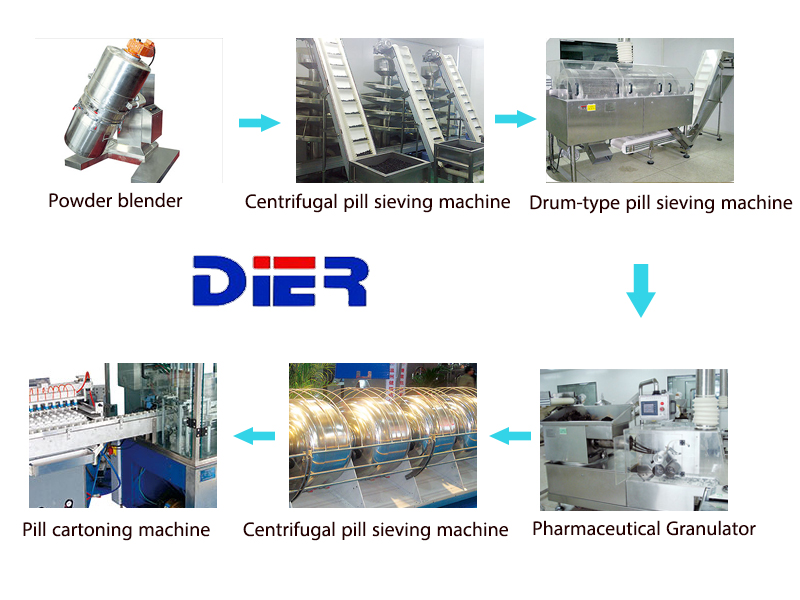

Powder Blending → Mixing (bottom discharge) → Kneading → Granulation → Cooling → Rounding (round pill shaping) → Sieving (drum type) → Microwave drying → Sieving (centrifugal type) → Coating → Finished Pills
